See first HDB floor plans (100 most common layouts) if you did not saw arleady. I created this additional page to post less common layouts found by me or contributed by people visiting my website, without overloading main page.
Terrible proportioned HDB layouts

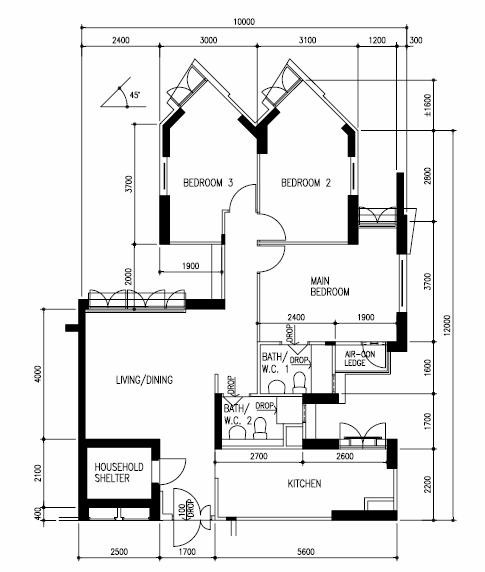

Bukit Batok West Avenue 5, blk 383-395 (Goodview Gardens, built 2005), probably identical with Farrer Park blk 11-15 (2004). 4-Room Model A, probably WORST HDB layout, space-wasting hallway to bedrooms which have a pointed shape. Very small living room, about 4×4 meters and I can’t imagine how to put a dining table, TV and sofa without having kids passing in front of sofa going to bedrooms.

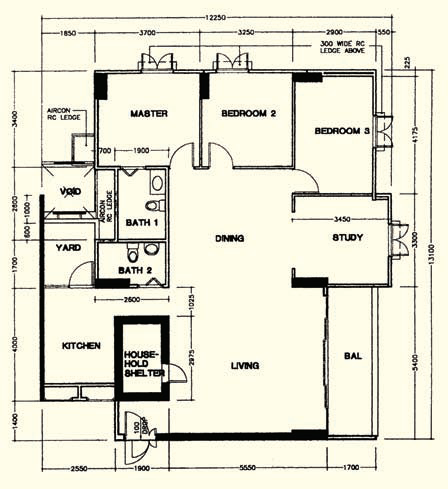

Sengkang, blk 297-299 (Compassvale Green, built 2001), Premium Executive Apartment, having HUGE living room and tiny bedrooms, no hallways, contrasting with Bukit Batok ones.
TEMP
Two examples of (Jumbo) Executive Apartment created from one 3-rm with one 4-rm, and one example of converting three 3-Room Simplified flats into two 4-rm flats.
href=”http://www.h88.com.sg/images/content/guides/hdb/EA-with-4-rms.jpg” target=”_blank” rel=”noopener noreferrer”>img title=”HDB Jumbo flat comprised by 3-Room and 4-Room Simplified” src=http://www.h88.com.sg/images/content/guides/hdb/EA-with-4-rms.jpg” alt=”Jumbo flat comprised by 3S and 4S flats” height=”160″ border=”0″ />
img title=”HDB Jumbo flat comprised by 3-Room and 4-Room Model A, 5-6 bedrooms possible (189 sqm)” src=”http://imagizer.imageshack.us/v2/1000x0100q90/840/floorplan.jpg”
DELETED
BTO/SERS era mix: 2-Room Studio (45 sqm) from Commonwealth View SERS, 3-Room (66 sqm) from Straits Vista BTO, 4-Room (90 sqm) from Membina Court SERS, 4-Room (90 sqm) from Kallang Heights SERS with bad-shaped living room, 4-room with central living room from unknown area. Point mouse cursor on photos for details!
TO BE DELETED
title=”HDB 2-Room Studio floor plan (45 sqm) from Commonwealth View” src=”http://www.myhometown.sg/Portals/0/Member/pet24/mum%20floor%20plan.jpg”
title=”HDB 4-Room apartment floor plan (90 sqm) from Kallang Heights” src=”http://www.myhometown.sg/Portals/0/Member/4RM_KallangFloorPlan.jpg”
THIS is how does look a block full with unsold Executive Apartment (140 sqm?) split into 2-Room (52 sqm?) and 3-Room (83 sqm), 5 sqm lobby, resulting in a fucking crazy layout! Notice window position for living room and master toilet! I am curious if they built another bomb shelter for the 2-Room! This is from Sengkang, but converted blocks are also in Jurong West.
MORE TO BE ADDED
Hi…
Could i check with you if the following design (floor plan) can be found in clementi, dover, jurong east or queenstown areas?
HDB1993-1998EA Corner (toilets are not back to back) I wasnt able to cut and paste the image here.
Regards,
Sharon
I’m staying in Bukit Batok West avenue 5, BLK390, Goodview Gardens. To me, it is a lovely place. There are different deign of gardens around each of the block, 2 pavilions are designed and built in between of blk 39388 to 390 and Blk 391 to 395. The background of the block series is the Military camp. Thats the reason why HDB created this unique strcuture to block window view from the residences.
The spacious living room has unblocked greenary view for my 5 rooms units.
I agree with you that the living room space is a bit congested for 4 room units here.
However, I DISAGREE on such way you commond it as ” possible the WORST HDB layout”. Come on, I believe if you will only choose to buy a house when you like it. Same here, WE LOVE GOODVIEW GARDENS, it is our HOME SWEET HOME !
The floorplan looks awful on the paper, but it’s not that bad to live in the unit. Or perhaps, I’m used to it having lived there for years.
Hi Do you have Blk 268 4s floor plan with two bedrooms facing the corridor?
Hi Do you have Serangoon North 4 Room NG Floor plan? Built in Year 1985
Hi, Do you have B494C Tampines 5I corner unit floor plan built during 1990s?
Hi do you have floor plan of 4A (stairs) at 4XX Pasir Ris Dr 4/6? The one with huge open balcony.
Unusual narrow 3-Room from Sengkang, does anyone know BTO name? -> This is Fernvale Crest, in Sengkang West next to Jalan Kayu.
Add blk 259 ang mo kio floor plan aka round hdb block
